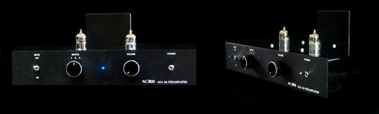

ACA 2B    ACA 2b (pronounced as "ACA tube") is a tube based preamplifier. The new ACA is deigned to offer the best preamplifier possible, yet at a very reasonable price.

Specifications

1. •3 inputs, 1 Record Output, 2 Main Outputs



2. •Tubes 2 - 6922 Sovtek (SRPP)



3. •90 second delay warm up (soft start)



4. •Frequency Response at 2 Volts RMS 10 - 100,000 Hz



5. •Gain 11dB



6. •THD ~ 0.07%



7. •Input Impedance 100,000



8. •Output Impedance 10,000



9. •Power Consumption 30 watts



10. •Dimensions and weight: H 3.5 x W 15 x D 8 inches / 5 KG



The ACA 2b is a pure CLASS A design. We use Sovtek tubes -- either the 6922 or the 6DJ8. These tubes are used in many very expensive preamplifier designs. The sound is fast, beefy and transparent. The ACA 2b features three inputs. It also has a record output and a main output. The ACA 2b is very high quality. We use platinum coated switches and ceramic sockets. The case is made from the same high quality chrome plated case as our SE 9 and SE 18.

The ACA 2b accepts up to 6 volts in and outputs up to 60 volts. This is enough power to fully drive just about any amplifier. The ACA 2b is an excellent way to upgrade the SE 9. The SE 9 and ACA 2b combination sounds fuller, more detailed with better bass and imaging.

Just

299.95 $
